Description

SPECIFICATIONS



Max Speed: 30-50km/h

Model Number: SU7

Power Source: Lithium Battery

Power Supply: Lithium Battery

Range per Power: > 60 km

Voltage: 36V

Wheel Size: 24”



Features

Exclusive reinforced rear seat design, khaki matte paint finish + brown leather seat cushion, carrying your loved one through city streets and capturing everyone's attention!

7-speed precise gear shifting + 400W silent motor, 23-mile pure electric range, pedal assist up to 40 miles, effortless commuting even on hills.

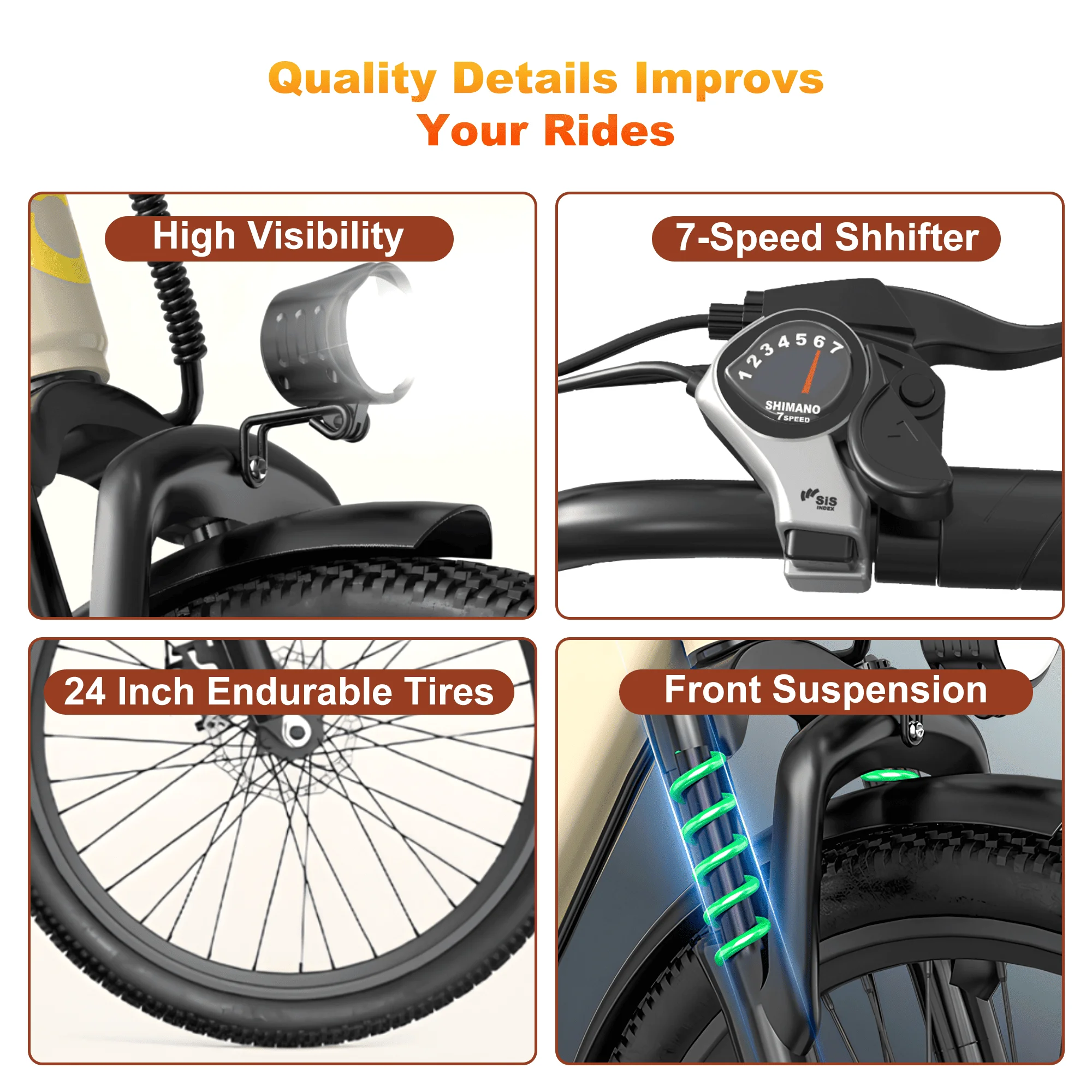

Front fork suspension + 24×1.95 puncture-resistant tires, paired with front and rear mechanical disc brakes, ensuring rock-solid braking in rainy or foggy conditions; LED headlights + reflective taillights for safe nighttime riding.

NFC LCD instrument panel with one-touch start! Real-time display of speed/battery level/mileage, keyless anti-theft design, simply tap your phone to get going.

Specification

Motor Parameters 400W

Instrument Panel NFC-enabled LCD display

Maximum Speed 23 MPH

Range 18-23 miles on pure electric power, 25-40 miles with pedal assist

Battery 36V 13Ah

Charging time 6-8 hours

Gear system Shimano rear 7-speed

Tires 24 x 1.95

Brakes Front and rear mechanical disc brakes

Gears 5-speed

Suspension Front fork suspension

Net weight 24.5 kg

NOTED:The rear seat has a maximum weight capacity of 160 pounds (approximately 75 kg). Passengers must hold onto the handrails. Children under 12 years of age must use a child safety seat. Use only the original 36V 2A charger (6–8 hours to fully charge). When storing for an extended period, maintain a 50% charge and avoid charging in environments below -10°C. Most U.S. states require a speed limit of ≤20 MPH for road use. Please set the speed limit via the instrument panel in advance. Inspect the disc brake pads for wear, tire pressure (recommended PSI 35-50), and chain lubrication every 500 miles.

FAQ

Q1: Do I need to download an app to activate NFC?

→ A: No app required! Simply pair your phone's NFC function and hold it near the dashboard to unlock.

Q2: How do I switch between pure electric mode and pedal-assist mode?

→ A: The handlebar features a 5-speed assist knob: 0 = pure pedaling, 1-3 = smart assist (recommended for commuting), 4-5 = strong electric drive (maximum speed 23 MPH).

Q3: Can a larger-capacity battery be installed to extend range?

→ A: The battery compartment is specifically designed for a 36V 13Ah battery. Upgrading may damage the circuitry. Range optimization tips: maintain adequate tire pressure and minimize sudden braking.

Q4: Which parts require self-assembly?

→ A: 90% assembled out of the box! Ready to ride in 10 minutes.

Q5: Is it safe to ride in the rain?

→ A: Supports light rain riding (IPX4 waterproof rating), but the controller must not be submerged in water! After heavy rain, wipe dry the battery connectors and avoid storing in open-air environments.
